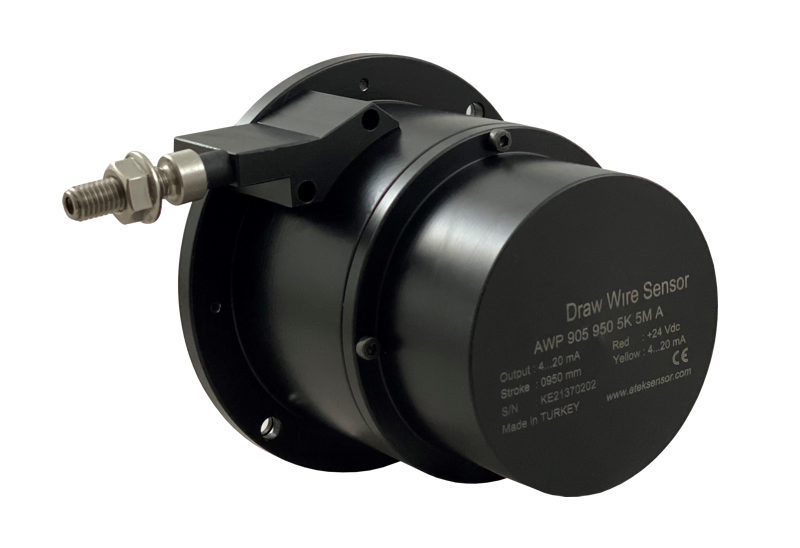

AWP 905 Draw Wire Sensor || ATEK || Made in Türkiye
2500mm, 4000mm or 5000mm stroke (measuring) lengths (Optional others)
±%0.5 FS linearity
Potentiometric, 0-10 VDC, 4-20 mA analog output or CANopen output
IP54 protection
Potentiometric measurement; robust stainless steel wire; suitable for long distance measurements; aluminum body suitable for outdoor use; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| 2500mm, 4000mm, 5000mm (optional other) | Potentiometric, 4-20 mA, 0-10 VDC or CANopen | IP 54 | ±%0,5 FS |  |
- 2500mm, 4000mm or 5000mm stroke (measuring) lengths (Optional others)
- Potentiometric, 0-10 VDC, 4-20 mA analog or CANopen output
- Aluminum anodized body
- Stainless steel measuring wire
- IP54 protection class
- Easy installation
- Shock/Vibration resistant
| Marka |
Atek |
|---|---|
| Stroke (measuring) Length |
2500mm, 4000mm, 5000mm (Optional others) |
| Linearity |
±%0.5 FS |
| Supply Voltage |
“A” and “V” models: 12…30 VDC |
| Output Signals |
Potentiometric |
| Measuring Type |
Potentiometric |
| Resistance |
5 KΩ (standard), 10 KΩ |
| Maximum Speed |
0.5 m/s |
| Required Force |
12 N |
| Operating Temp. |
-25°C … +85°C |
| Materials |
Housing: Aluminum/delrin |
| Connection Cable Length |
Connection Cable Length |
| Protection Class |
IP54 |
- Elevators
- Press machines
- Crane systems
- Wood processing machines
- Marble processing machines
- Storage positioning
- Dam protections
- Sluice gate control
- Air compressors
- Glass processing machines
- Lifting platforms
- Applications in medical technologies (operating table etc.)
- Forklifts
- Screw machines
- Paper machines
- Sewing machines
- Hydraulic machines
- Sheet metal machines
- Printing machines
- Horizontal control equipments
- Construction machines
- Industrial robots
- Injection machines
- X-Y axis displacement
- Liquid level measurements and position control
