Potentiometric Linear Position Sensors

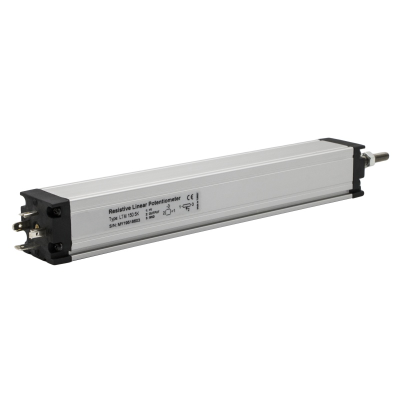

Potentiometric measurement
One-sided Actuating Rod
Measurement lengths between 50 mm and 1000 mm
Potentiometric, 4-20 mA or 0-10V analog output options
5 m/s operating speed
IP62 protection class

Easy installation thanks to adjustable mounting feet on the body; potentiometric measurement; high sensitivity; Long life; absolute measurement thanks to analog outputs, that is, the feature of not losing position information in case of power outages

Datasheet

Measuring Range	Output	Protection	Electrical Connection	Linearity	Datasheet
50-1000mm	4-20 mA, 0-10V or Potentiometric	IP 62	DIN 43650-A or cable	%0,2…%0,1

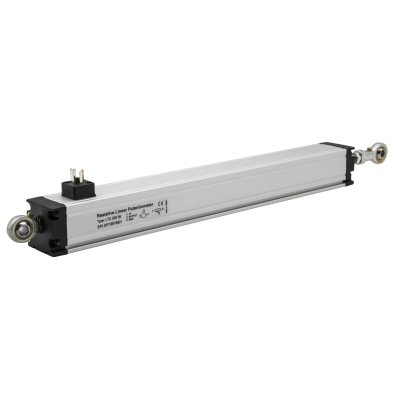

Potentiometric measurement
Double articulated body structure
Measurement lengths between 50 mm and 1000 mm
Potentiometric, 4-20 mA or 0-10V analog output options
5 m/s operating speed
IP62 protection class

Easy installation with its double-sided articulated body structure; potentiometric measurement; high sensitivity; long life; absolute measurement thanks to analog outputs, that is, the feature of not losing position information in case of power outages

Datasheet

Measuring Range	Output	Protection	Electrical Connection	Linearity	Datasheet
50-1000mm	4-20 mA, 0-10V or Potentiometric	IP62	DIN 43650-C or cable	%0,2…%0,1

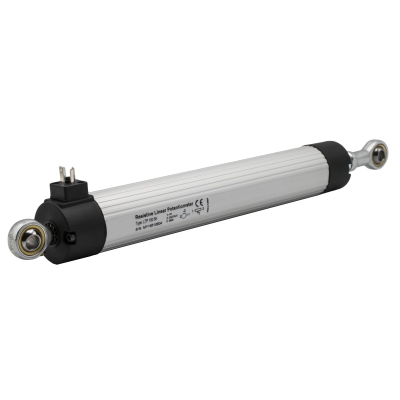

Potentiometric measurement
Double articulated square body structure
Measurement lengths between 50 mm and 1000 mm
Potentiometric, 4-20 mA or 0-10V analog output options
5 m/s operating speed
IP62 protection class

Easy installation with its double-sided articulated square body structure; potentiometric measurement; high sensitivity; long life; absolute measurement thanks to analog outputs, that is, the feature of not losing position information in case of power outages

Datasheet

Measuring Range	Output	Protection	Electrical Connection	Linearity	Datasheet
50-1000mm	4-20 mA, 0-10V or Potentiometric	IP62	DIN 43650-C or cable	%0,2…%0,1

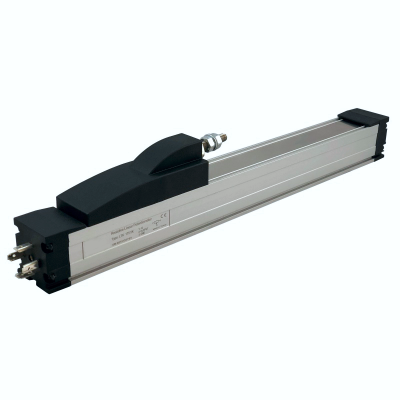

Potentiometric measurement
Rodless, sliding system
Measurement lengths between 50 mm and 1500 mm
Potentiometric, 4-20 mA or 0-10V analog output options
5 m/s operating speed
IP 40 protection class (if slider is mounted upside down, it becomes IP54)

Potentiometric measurement; shaftless, slide system; long distance measurement; high sensitivity, long life; Absolute operation, that is, not losing position information in case of power outages

Datasheet

Measuring Range	Output	Protection	Electrical Connection	Linearity	Datasheet
50-1500mm	4-20 mA, 0-10V or Potentiometric	IP 40 / IP54	DIN 43650-A	±%0,1

Potentiometric measurement
Short distance measurement
Measurement lengths between 10 mm and 300 mm
Potentiometric, 4-20 mA or 0-10V analog output options
5 m/s operating speed
IP 40 protection class

Potentiometric measurement, short distance measurement; Small body structure, High sensitivity, Long life; Absolute operation thanks to analog outputs, that is, not losing position information in case of power outages

Datasheet

Measuring Range	Output	Protection	Electrical Connection	Linearity	Datasheet
50-300mm	4-20 mA, 0-10V or Potentiometric	IP 40	DIN 43650-C, M16 or cable	±%0,1 … ±%1

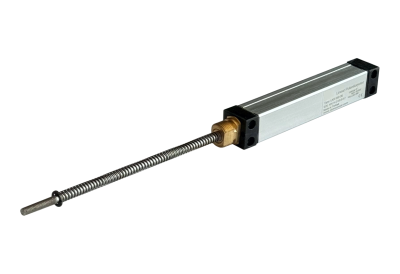

Potentiometric measurement
Push-back spring system
Measurement lengths between 10 mm and 150 mm
Potentiometric, 4-20 mA or 0-10V analog output options
5 m/s operating speed
IP 40 protection class

Potentiometric measurement; Push-back spring system; small body structure; High sensitivity, Long life; Absolute operation, that is, not losing position information in case of power outages

Datasheet

Measuring Range	Output	Protection	Electrical Connection	Linearity	Datasheet
10-150mm	Potentiometric	IP 40	DIN 43650-C, M16 or cable	±%0,1 … ±%1

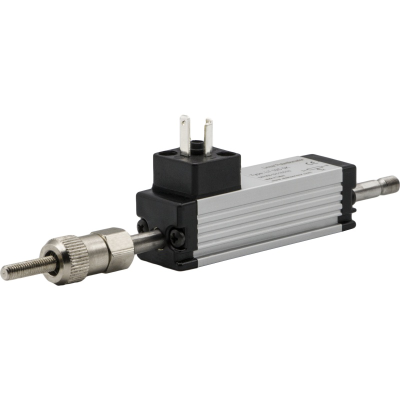

Potentiometric measurement
One-side actuating rod
Measurement lengths between 10 mm and 300 mm
Potentiometric, 4-20 mA or 0-10V analog output options
5 m/s operating speed
Standard IP40, optional IP65 protection

Potentiometric measurement; Small and compact body structure with one-side actuating rod; High sensitivity, Long life; Absolute operation, that is, not losing position information in case of power outages

Datasheet

Measuring Range	Output	Protection	Electrical Connection	Linearity	Datasheet
10-300mm	4-20 mA, 0-10V or Potentiometric	IP 40, optional IP 65	DIN 43650-C, M16 or cable	±%0,1 … ±%1

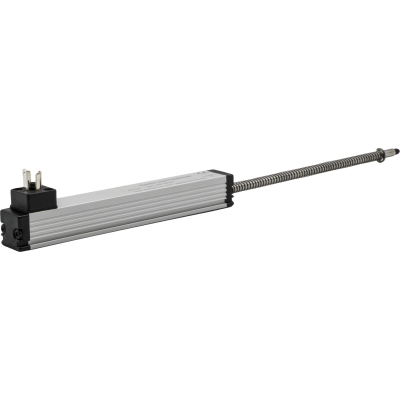

Potentiometric measurement
Push-back spring system
Measurement lengths between 10 mm and 150 mm
Potentiometric, 4-20 mA or 0-10V analog output options
5 m/s operating speed
Standard IP40, optional IP65 protection

Potentiometric measurement; Push-back spring system; Small body structure; High sensitivity, Long life; Absolute operation, that is, not losing position information in case of power outages

Datasheet

Measuring Range	Output	Protection	Electrical Connection	Linearity	Datasheet
10-150mm	4-20 mA, 0-10V or Potentiometric	IP 40, optional IP 65	DIN 43650-C, M16 or cable	±%0,1 … ±%1

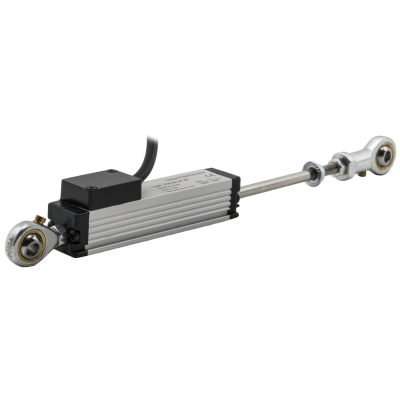

Potentiometric measurement
Push- Double-side articulated body
Measurement lengths between 10 mm and 300 mm
Potentiometric, 4-20 mA or 0-10V analog output options
5 m/s operating speed
Standard IP40, optional IP65 protection

Potentiometric measurement; Articulated on both sides; Compact and small body structure; High sensitivity, Long life; Absolute operation, that is, not losing position information in case of power outages

Datasheet

Measuring Range	Output	Protection	Electrical Connection	Linearity	Datasheet
10-300mm	4-20 mA, 0-10V or Potentiometric	IP 40, optional IP 65	DIN 43650-C, M16 or cable	±%0,1 … ±%1
