Cable and ConnectorsMagnetic Linear Encoders
MLC 310 Linear Scale || ATEK || Made in Türkiye
Magnetic measurement
Incremental encoder output
Contactless / non-friction system
Measuring up to 20 meters
Resolution options starting from 5µm
IP67 protection class
High accuracy measurement with contactless magnetic system; Retention profile closed system, Protection against harsh environments with dust, humid and oil
| Measuring Range | Output | Protection | Magnetic Tape | Resolution |
Datasheet |
|---|---|---|---|---|---|
| Up to 20 meters |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B5 | 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm, optional other resolutions |  |
MLC 320 Linear Scale || ATEK || Made in Türkiye
Magnetic measurement
Incremental encoder output
Contactless / non-friction system
Extra slim profile structure
Resolution options starting from 1µm
IP67 protection class
High accuracy measurement with contactless magnetic system; Extra slim, retention profile closed system; Sealed protection against harsh environments with dust, humid and oil
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 3 meters |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B2 | 1µm, 5µm, 10µm, 25 µm, 50µm, 62.5µm, 80µm, optional other resolutions | |
MLC 330 Linear Scale || ATEK || Made in Türkiye
Magnetic measurement
Incremental encoder output
Contactless / non-friction system
Slim profile structure
Measuring up to 20 meters
Resolution options starting from 5µm
IP67 protection class
High accuracy measurement with contactless magnetic system; Slim, retention profile closed system; Sealed protection against harsh environments with dust, humid and oil
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 20 meters |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B5 | 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm, optional other resolutions | |
MLC 410 Series Press Brake Linear Encoder || ATEK || Made in Türkiye
Magnetic measurement
Measuring up to 4000 mm
Resolution options starting from 5µm
Self-embedded bearing system
IP67 protection class
Compatible with Delem, Cybelec and ESA
Datasheet
High accuracy measurement with contactless magnetic system; special design for press brake machines; self-aligning system; extra resistant to harsh conditions such as high temperature, speed or vibration
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 4000 mm |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B5 | 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm, optional other resolutions | |
MLC 420 Series Press Brake Linear Encoder || ATEK || Made in Türkiye
Magnetic measurement
Incremental utput
Stroke up to 2000 mm
Resolution options up to 1 µm
IP65 protection class
Compatible with Delem, Cybelec, ESA and STEP devices
Datasheet
High accuracy measurement with contactless magnetic system; special design for press brake machines; movable reference point; high tolerance to shock and vibrations; sealed protection against harsh environments with dust, humid and oil
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 2000 mm |
Push-Pull, TTL RS422 Line Driver
|
IP 65 | B2 | 1µm, 5µm, 10µm, 25µm, 50µm, others on request | |
MLC 520 Series Linear Encoders || ATEK || Made in Türkiye
Magnetic, non-contact measurement
Incremental encoder output
Fixed Z reference point
Different measuring lengths between 50 … 2000 mm
Resolution options up to 5 µm
IP67 protection
LED indicator
Compatible with Delem, Cybelec and ESA
High accuracy measurement with contactless magnetic system; special design for press brake machines; movable reference point; high tolerance to shock and vibrations; high protection against harsh environments with dust, humidty and oil
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 2000 mm |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B2 | 5µm, 10µm, 25µm,50 µm, 62.5µm | |
LTS Series Piston Type Encoder || ATEK || Made in Türkiye
Contactless and frictionless operation
Precise measurement up to 1000 mm
Resolution options starting from 5 µm
Push-Pull, TTL RS422 Line Driver output
Articulated on both sides
IP 65 Protection class
Magnetic principle-operated double side articulation linear encoder; infinite mechanical lifetime from contactless operation; high operating speed of up to 3 m/s
| Maximum Measuring Length | Output | Protection | Resolution | Datasheet |
|---|---|---|---|---|
| Up to 1000 mm |
Push-Pull,
TTL RS422 Line Driver
|
IP 65 | 5 µm, 10 µm, 20 µm, 25 µm, 62.5 µm, 80µm, 100 µm | |
MLS 120 / 121 Series Magnetic Reader Sensor || ATEK || Made in Türkiye
Magnetic measurement
Small size
Easy mounting
Measure up to 100 meters
Resolution from 1 μm to 100 μm
Model with cable or socket
Spiral or PUR cable option
IP67 protection class
Reader sensor for contactless measurement on magnetic tape; internal tape slider against dust; extra durability against environmental factors such as moisture, oil, dust; model with cable or socket
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 100 meters |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B2, B5 |
1µm, 5 µm, 10µm, 25µm, 62.5µm, 80µm, 100µm, others on request
|
|
MLS 130 Series Magnetic Reader Sensor || ATEK || Made in Türkiye
Magnetic measurement
Small size
Easy mounting
Measure up to 100 meters
Resolution from 1 μm to 100 μm
Spiral or PUR cable option
IP67 protection class
Reader sensor capable of contactless measurement on magnetic tape; the perfect solution for tight spaces with very small size; it is completely insensitive to factors such as moisture, oil, dust, etc.; models with cable or spiral
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 100 meters |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B2, B5 |
1 µm, 5 µm, 10 µm, 25 µm, 62.5 µm, 80µm, 100µm, others on request
|
|

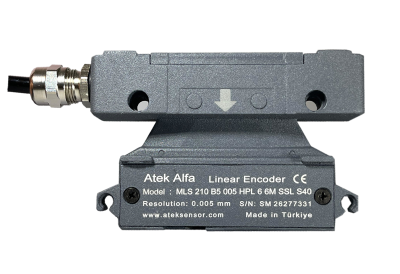

MLS 210 Series Magnetic Reader Sensor || ATEK || Made in Türkiye
Magnetic measurement
Incremental output
Resolution from 5 μm to 100 μm
Easy mounting
Options with or without chip scraper
IP67 protection class
The principle of magnetic non-contact precision measurement; durable aluminum armored, high temperature, extra resistant against harsh conditions such as vibration or speed; options with cable or spiral; slide or slideless options
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 100 meters |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B5 |
5µm, 10µm, 25µm, 62.5µm, 80µm, 100µm, others on request
|
|
PS 110 Series Profile || ATEK || Made in Türkiye
Suitable for MLS 110/120/130/210 series
Extra easy mounting
Sturdy aluminum housing
Unlimited mechanical life
IP67 protection class
“L” type profile designed for MLS 110/120/130/210 series magnetic reader sensors; B series 5mm magnetic tape integrated in profile; non-contact, frictionless measurement
| Body Material | Protection Class | Reader Sensor-Tape Operating Distance | Datasheet |
|---|---|---|---|
| Aluminum | IP 67 | 1,5 mm (Max 2,5 mm) | |
PS 210/220/230 Series Profiles || ATEK || Made in Türkiye
Suitable for MLS 110/120/130/210 series
Extra easy mounting
Sturdy aluminum housing
Unlimited mechanical life
IP67 protection class
Magnetic reader sensors the thin profile designed for the MLS 110/120/130/210 series; B series integrated in 5mm magnetic tape profile; contactless, frictionless measurement
| Body Material | Protection Class | Reader Sensor-Tape Operating Distance | Datasheet |
|---|---|---|---|
| Aluminum | IP 67 | 0,1 mm and 2 mm | |
