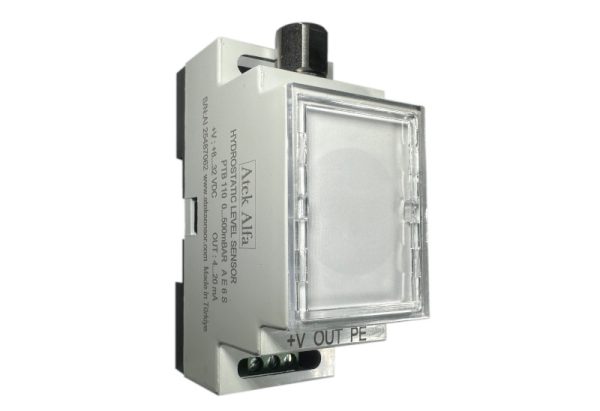

PTB 110 Hydrostatic Level Sensor || ATEK || Made in Türkiye
Special design for textile sector
Piezoresistive working principle
Different models between 100 mBar and 600 mBar
Analog 4-20mA output
±0.3% F.S accuracy
IP40 protection class
Special design for textile sector; air isolated mounting; high sensitivity; EMC and reverse polarization protected
| Measuring Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| Different models from 0…100mbar to 0…600mbar | 4-20 mA | IP40 | ±%0,3 F.S |  |
- Piezoresistive pressure sensor
- Rail mounting
- Long-term excellent work
- Air isolated mounting
- EMC and reverse polarity protection
- Analog 4 … 20mA output
- Different models from 100 milibar to 600 milibar
| Marka |
Atek |
|---|---|
| Measuring Range |
0…100mbar ile 0…600mBar |
| Working Principle |
Piezoresistive |
| Maximum Pressure Strength |
300%F.S. |
| Supply Voltage |
4-20 mA: 8 … 32 VDC |
| Current Consumption |
30mA max. |
| Output Signal |
4…20mA (2-wire) |
| Accuracy |
±%0,3 F.S @25ᵒC |
| Response Time |
1ms … nominal pressure |
| Operating Temperature |
-40°C…+85°C |
| Mechanical Connection |
Rail mounting |
| Electrical Connection |
Terminal |
| Protection Classı |
IP40 |
- Tekstil sektörü
- Kumaş boyama makineleri
- Pnömatik Sistemler
- Hidrolik Sistemler
- Makina Ekipmanları
- Hava Soğutma-Isıtma Sistemleri
- Su Teknolojileri
- Otomasyon Uygulamaları
