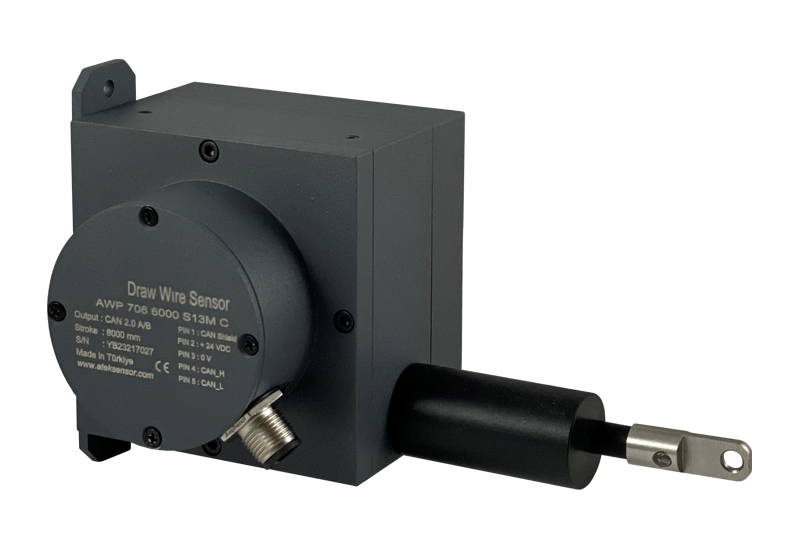

AWP 706 Programmable Draw Wire Sensor || ATEK || Made in Türkiye
0…6000 mm stroke (measuring) length
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP67 protection class
Magnetic absolute measurement; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Resolution | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|
| 0…6000 mm | 0.05 mm | Analog or CANopen | IP67 | ±%0,5 FS |  |
- 6000 mm measuring range
- Magnetic absolute measurement technology
- Robust stainless steel measuring wire
- Aluminium housing
- Analog or CANopen output
- Programmable analog output option
- IP67 protection class
- Compact design and easy mounting
- 1 m/s maximum movement speed
- Shock/vibration resistant
| Marka |
Atek |
|---|---|
| Sensing device |
Magnetic absolute encoder |
| Supply Voltage |
Analog: 15 … 26 VDC |
| Current Consumption |
≤60 mA |
| Reverse Polarity Protection |
Yes |
| Short Circuit Protection |
Yes |
| Resolution |
0.05 mm |
| Linearity |
±%0.5 FS |
| Response Frequency |
500 Hz |
| Electrical Interface |
Analog (programmable option) or CANopen |
| Electrical Connection |
M12 / 5 pin male connector or cable |
| Stroke (measuring) Length |
0…6000 mm |
| Max Speed |
1 m/s |
| Protection |
IP67 |
| Operating Temp. |
-40 … +85 °C |
| Material |
Body: Aluminum |
| Communication Profile |
CiA 301 |
| Device Type |
CANopen, CiA DS406 |
| Node ID |
It can be set from 1 to 127 with LSS or SDO. |
| Baud Rate |
10 kBit/s, 20 kBit/s, 50 kBit/s, 100 kBit/s, 125 kBit/s, 250 kBit/s, 500 kBit/s, 800 kBit/s, 1 Mbit/s |
| PDO Data Rate |
100 ms |
| Error Control |
Heartbeat, Emergency Message |
| PDO |
3 Tx PDO |
| PDO Modes |
Event/Time triggered, Synch/Asynch |
| SDO |
1 server |
| Position Information |
Object Dictionary 0x6020 |
| Termination Resistance |
Optional |
- Elevators
- Press machines
- Crane systems
- Wood processing machines
- Marble processing machines
- Storage positioning
- Dam protections
- Sluice gate control
- Air compressors
- Glass processing machines
- Lifting platforms
- Applications in medical technologies (operating table etc.)
- Forklifts
- Screw machines
- Paper machines
- Sewing machines
- Hydraulic machines
- Sheet metal machines
- Printing machines
- Horizontal control equipments
- Construction machines
- Industrial robots
- Injection machines
- X-Y axis displacement
- Liquid level measurements and position control
