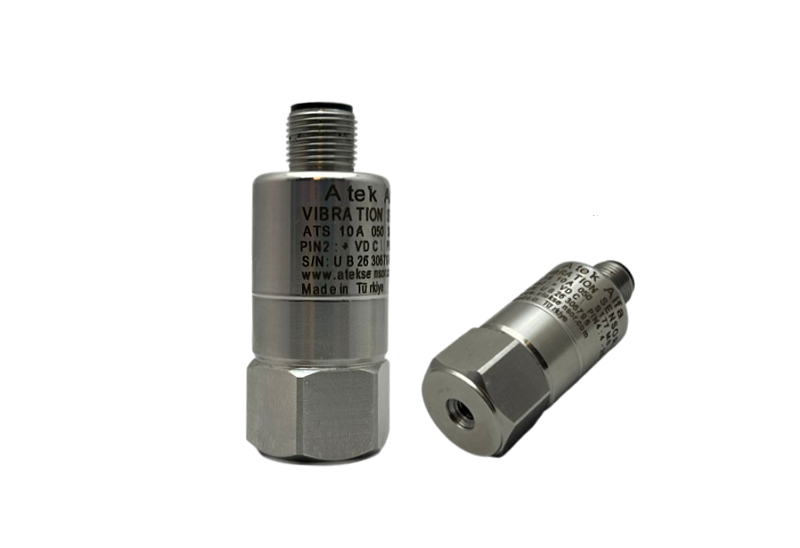

ATS 10 Vibration Sensor || ATEK || Made in Türkiye
For use with PLC/DCS systems
0-10mm/sn to 0-100mm/sn velocity ranges
Less than 5% sensitivity
10Hz to 1Khz frequency response
4-20mA output
1/4 28″ UNF Female, M6x1mm Male, M8x1.25mm Male, M10x1.5mm Male etc. connection options
M12 connector
IP67 protection
Accelerometer for use with PLC/DCS systems; Customisable features
| Velocity Range | Output | Mounted Base Resonance | Protection | Sensitivity | Datasheet |
|---|---|---|---|---|---|
| 0-10mm/sn, 0-20mm/sn, 0-25mm/sn, 0-50mm/sn, 0-100mm/sn | 4-20 mA | 5kHz min | IP67 | %5 |
|
- For use with PLC/DCS systems
- 0-10mm/sn to 0-100mm/sn velocity ranges
- Less than 5% sensitivity
- 10Hz to 1Khz frequency response
- 4-20mA output
- M12 connector
- 1/4 28″ UNF Female, M6x1mm Male, M8x1.25mm Male, M10x1.5mm Male etc. connection options
- Stainless steel case
- IP67 protection
| Mounted Base Resonance |
5kHz min |
|---|---|
| Velocity Ranges |
0-10mm/sn, 0-20mm/sn, 0-25mm/sn, 0-50mm/sn, 0-100mm/sn |
| Frequency Response |
10Hz (600cpm) ila 1kHz (60kcpm) ± %5 – ISO10816 |
| Isolation |
Base isolated |
| Current Output |
4-20mA DC proportional to Velocity Range |
| Case Material |
Stainless Steel |
| Sensing Element/Construction |
PZT/Compression |
| Mounting Torque |
8Nm |
| Mounting Threads |
¼-28” UNF Female, M6 x 1mm Male, M8 x 1.25mm Male, M10 x 1.5mm Male |
| Operating Temperature Range |
-25 to 120ºC |
| Protection |
IP67 |
