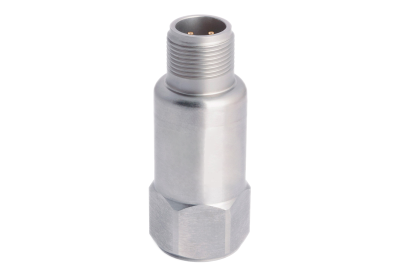

ATS 10 Vibration Sensor || ATEK || Made in Türkiye
For use with PLC/DCS systems
0-10mm/sn to 0-100mm/sn velocity ranges
Less than 5% sensitivity
10Hz to 1Khz frequency response
4-20mA output
1/4 28″ UNF Female, M6x1mm Male, M8x1.25mm Male, M10x1.5mm Male etc. connection options
M12 connector
IP67 protection
Accelerometer for use with PLC/DCS systems; Customisable features
| Velocity Range | Output | Mounted Base Resonance | Protection | Sensitivity | Datasheet |
|---|---|---|---|---|---|
| 0-10mm/sn, 0-20mm/sn, 0-25mm/sn, 0-50mm/sn, 0-100mm/sn | 4-20 mA | 5kHz min | IP67 | %5 |
|
