EPA 100 Process Control Device || ATEK || Made in Turkey
Different analog input functions
RS-232, RS-485, USB or CANopen communication options
Analog output options
2 adjustable relay outputs
24 VAC/DC or 85-265 VAC supply options
2 lines 5 digit display
Universal process control device; RS-232, RS-485, USB or CANopen option; 3.5 kHz high sampling rate
| Display | Input Options | Supply Voltage | Datasheet |
|---|---|---|---|
| Dual line 5 digits |
Potentiometric, 0-10 V, 0-5 V, 0.5-4.5 V, 4-20 mA, 3.33 mV/V, 2mV/V, 2.5mV/V, CANopen
|
24 VAC/DC 50/60 Hz 85-265 VAC 50/60 Hz |  |
- 4 different analogue input on one device
- Two lines display;
- The first line shows the analog process value from the sensor and the second line shows the unit or relay set point for the measured value
- Load Cell can also be connected
- RS-232, RS-485, USB or CANopen communication
- 2 relay outputs which can be set in different functions
- Analog output options (0-10V, 0-5V, 0.5-4.5V, 4-20mA, 0-20mA)
- Invertible analog output (eg, 0 V, 20-0 mA)
- High refresh rate: 3.5 kHz
- Converting analogue signals (4-20 mA, 0-20 mA, 0-10 V, potentiometric, ratiometric) to CANopen signals,
- and CANopen signals to analogue.
- Fast and easy parameter configuration via USB
- Compact design
- User friendly and easy interface
- Tare function (scaling to zero)
- Password protection and Hide function for menu
| Marka |
Atek |
|---|---|
| Supply Voltage |
24 VAC/DC 50/60 Hz |
| Power Consumption |
9 VA / 2,7 Watt Maximum |
| Sensor Supply Voltage |
Pot: 10 VDC |
| Maximum Sensor Supply Current |
100 mA |
| Refresh Rate |
3.5 kHz |
| Resolution |
16 bit |
| Analog Inputs |
Potentiometer, 0.5-4.5 V, 0-5 V, 0-10 V, 4-20 mA, 0-20 mA, 3.33 mV/V, 2mV/V, 2.5mV/V Ratiometric |
| Relay Outputs |
2 Adet 250 VAC 3A (Resistive Load) Relay |
| Serial Communication (Optional) |
RS-232, RS-485, USB, CANopen |
| Analog Outputs (Optional) |
0-10 V, 0-5 V, 0.5- 4.5 V, 4-20 mA, 0-20 mA |
| Connection |
2,5 mm 2 connector terminal |
| Operating Temperature |
0 … 50 °C |
| Protection Class |
IP60 Front Panel, IP20 Back Panel |
- Instantaneous display of output of any measuring device with Potentiometric, Voltage, Current or CANopen output
- Where your automation solutions require sensor output relay output
- Every field of industrial measurement
Benzer Ürünler
EPD11 Plug-In Intelligent LCD Display with Alarm for Transmitters || ESKON
Dro, Display and Counters, Displays For Pressure Transmitters, Pressure Measurement, Pressure Transmitters and Switches With Display, Process Control Devices
5 digit, 7 section high-contrast LCD display DIN 43650 4 pin polarized Plug in/out connector Compatible with transmitters with 4-20 mA output 4-20 mA 2-wire line supply Accuracy: 0.1% +/- 1 digit IP55 protection class
The EPD11 digital display is used to convert and display the 4-20mA signal taken from the transmitters to the desired measurement unit. The product has high accuracy, good stability, easy operate features. Designed to plug in / plug out of DIN43650 connected 2 wire transmitters. The product has high accuracy, stability and easy operation. It is a convenient way to add a display, and an alarm set point, to pressure or other transmitters.| Display Range | Input Signal | Output Signal | Accuracy | Protection Class | Datasheet |
|---|---|---|---|---|---|
| -19999 ～99999 | 4-20 mA | 2 way switch, 1 way switch + 4-20 mA | 0.1%F.S ±1 bit | IP55 | |
ADR 10 Digital Readout Systems || ATEK || Made in Türkiye
2,3 or 4 axis option Universal functions Data transmission with RS232 Port, optional relay output 1000 coordinate memory 8+1 digit display 5 different language options Easy mounting
Digital Coordinate Reading Screen; designed for maximum efficiency and performance in all metalworking machines; big program memory with 1000 units; 5 different language options
| Number of Axis | Display | Port | Display Sensitivity | Datasheet |
|---|---|---|---|---|
| 2, 3 or 4 | 8+1 Digit | RS-232 | 0.1 µm, 0.2 µm, 0.5 µm, 1µm, 5µm, 10µm, 25µm or user defined resolution values | |

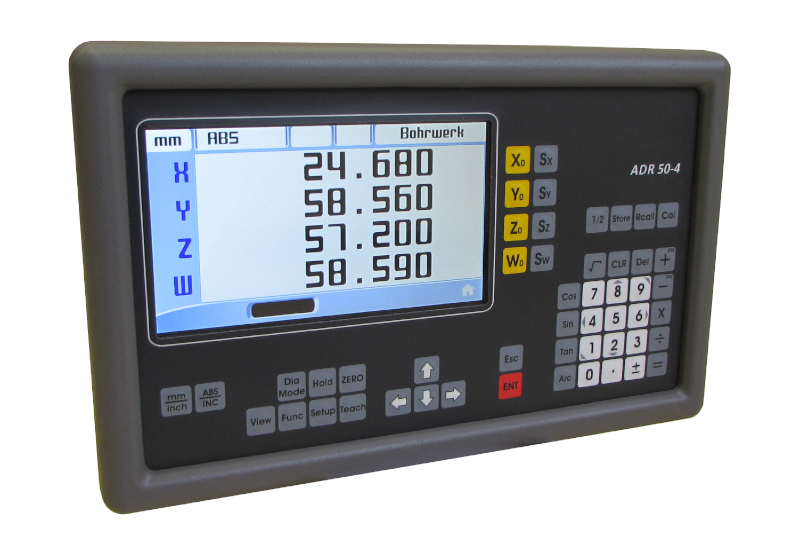

ADR 50 Color LCD Digital Readout Systems || ATEK || Made in Türkiye
