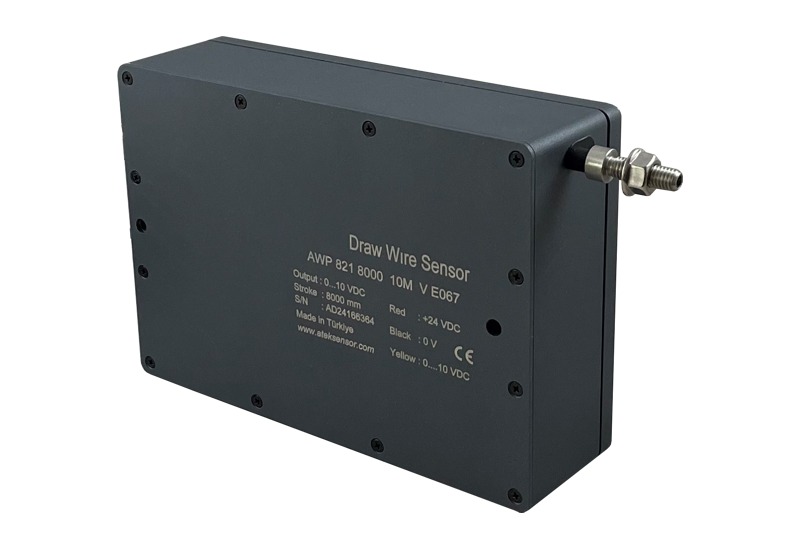

Different measuring lengths up to 8000 mm (optional other strokes)
±0.5% FS linearity
Potentiometric, 0-10 VDC, 4-20 mA analog output or CANopen output options
Redundant output model option
IP54 protection class (optional IP67)
Datasheet

Potentiometric measurement; robust stainless steel wire; suitable for long distance measurements; aluminum body; resistant to shocks and vibrations


Datasheet
TR
EN
Stroke (measuring) Lengths Output Protection Linearity Datasheet
Different measuring lengths up to 8000 mm (optional other strokes) Potentiometric, 4-20 mA Current, 0-10 VDC Voltage or CANopen  IP 54 (optional IP67) ±0,5% FS
  • Different measuring lengths up to 8000 mm (optional other strokes)
  • ±0.5% FS linearity
  • Potentiometric, 0-10 VDC, 4-20 mA analog output or CANopen output options
  • Redundant output model option
  • IP54 protection class (optional IP67)
  • Compact design
  • Easy installation
  • Shock/Vibration resistant
  • Aluminum body
Marka

Atek
Stroke (measuring) length

Different measuring lengths up to 8000 mm (optional other strokes)
Linearity

±%0.5 FS
Supply Voltage

‘A‘ and ‘V’ models: 12…30 VDC
Potentiometric output model: 42V max.
Signal Output Type

Potentiometric
0-10 VDC
4-20 mA
(Optionally Redundant Output)
Measuring Type

Potentiometric
Resistance

5 KΩ (standard), 10 KΩ
Maximum Speed

0.5 m/s
Required Force

12 N
Operating Temperature

-25°C … +85°C
Materials

Housing: Aluminum
Measuring Wire: Stainless steel
IP Protection Class

IP54 (optional IP67)
  • Elevators
  • Press machines
  • Crane systems
  • Wood processing machines
  • Marble processing machines
  • Storage positioning
  • Dam protections
  • Sluice gate control
  • Air compressors
  • Glass processing machines
  • Lifting platforms
  • Applications in medical technologies (operating table etc.)
  • Forklifts
  • Screw machines
  • Paper machines
  • Sewing machines
  • Hydraulic machines
  • Sheet metal machines
  • Printing machines
  • Horizontal control equipments
  • Construction machines
  • Industrial robots
  • Injection machines
  • X-Y axis displacement
  • Liquid level measurements and position control
DATASHEET
PDF
PDF
CAD / STEP
ZIP
CAN EDS
ZIP
