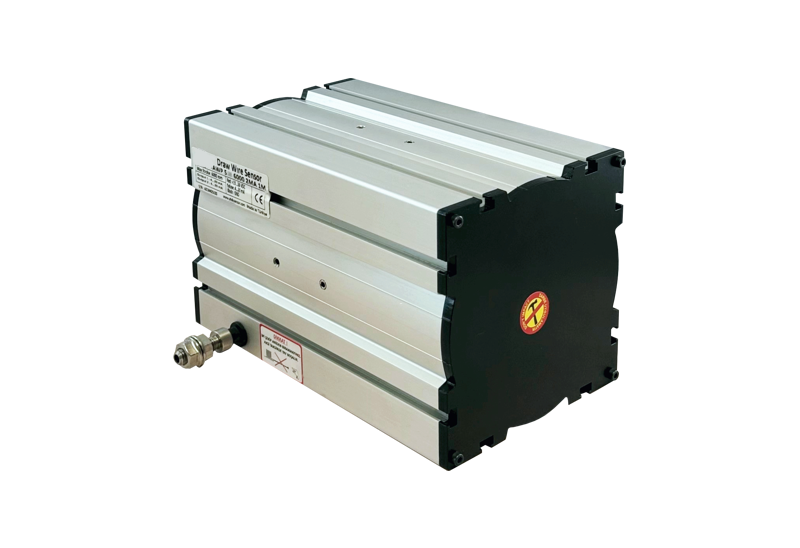

AWP 506 Programmable Draw Wire Sensor || ATEK || Made in Türkiye

Click to enlarge
Atek

Measuring length up to 6000 mm
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output (Redundant output option)
Programmable analog output option
IP67 protection class

Magnetic absolute measurement; programmable analog output; redundant output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations


Datasheet
TR
EN
Stroke (measuring) Lengths Resolution Output Type Protection Linearity Datasheet
0…6000 mm  0.05mm Analog or CANopen (Optional Redundant) IP67 ±%0,5 FS
  • Measuring length up to 6000mm
  • Magnetic absolute measurement technology
  • Analog or CANopen output (Redundant output option)
  • Programmable analog output option
  • Robust stainless steel measuring wire
  • Aluminium housing
  • IP67 protection class
  • Compact design and easy mounting
  • 1 m/s maximum movement speed
  • Shock/vibration resistant
Marka

Atek
Sensing device

Magnetic absolute encoder
Supply Voltage

Analog: 15 … 26 VDC
CANopen: 12 … 30 VDC
Current Consumption

≤60 mA
Reverse Polarity Protection

Yes
Short Circuit Protection

Yes
Resolution

0.05 mm
Linearity

±%0.5 FS
Response Frequency

500 Hz
Electrical Interface

Analog current/voltage (programmable)
CANopen, CiA DS406
(Optional Redundant output)
Electrical Connection

M12 connector or cable
Stroke (measuring) Length

0…6000 mm
Max Speed

1 m/s
Protection

IP67
Operating Temp.

-40 … +85 °C
Material

Body: Aluminum
Measuring Wire: Stainless Steel
  • Elevators
  • Press machines
  • Crane systems
  • Wood processing machines
  • Marble processing machines
  • Storage positioning
  • Dam protections
  • Sluice gate control
  • Air compressors
  • Glass processing machines
  • Lifting platforms
  • Applications in medical technologies (operating table etc.)
  • Forklifts
  • Screw machines
  • Paper machines
  • Sewing machines
  • Hydraulic machines
  • Sheet metal machines
  • Printing machines
  • Horizontal control equipments
  • Construction machines
  • Industrial robots
  • Injection machines
  • X-Y axis displacement
  • Liquid level measurements and position control
DATASHEET
PDF
PDF
CAD / STEP
ZIP
CAN EDS
ZIP
