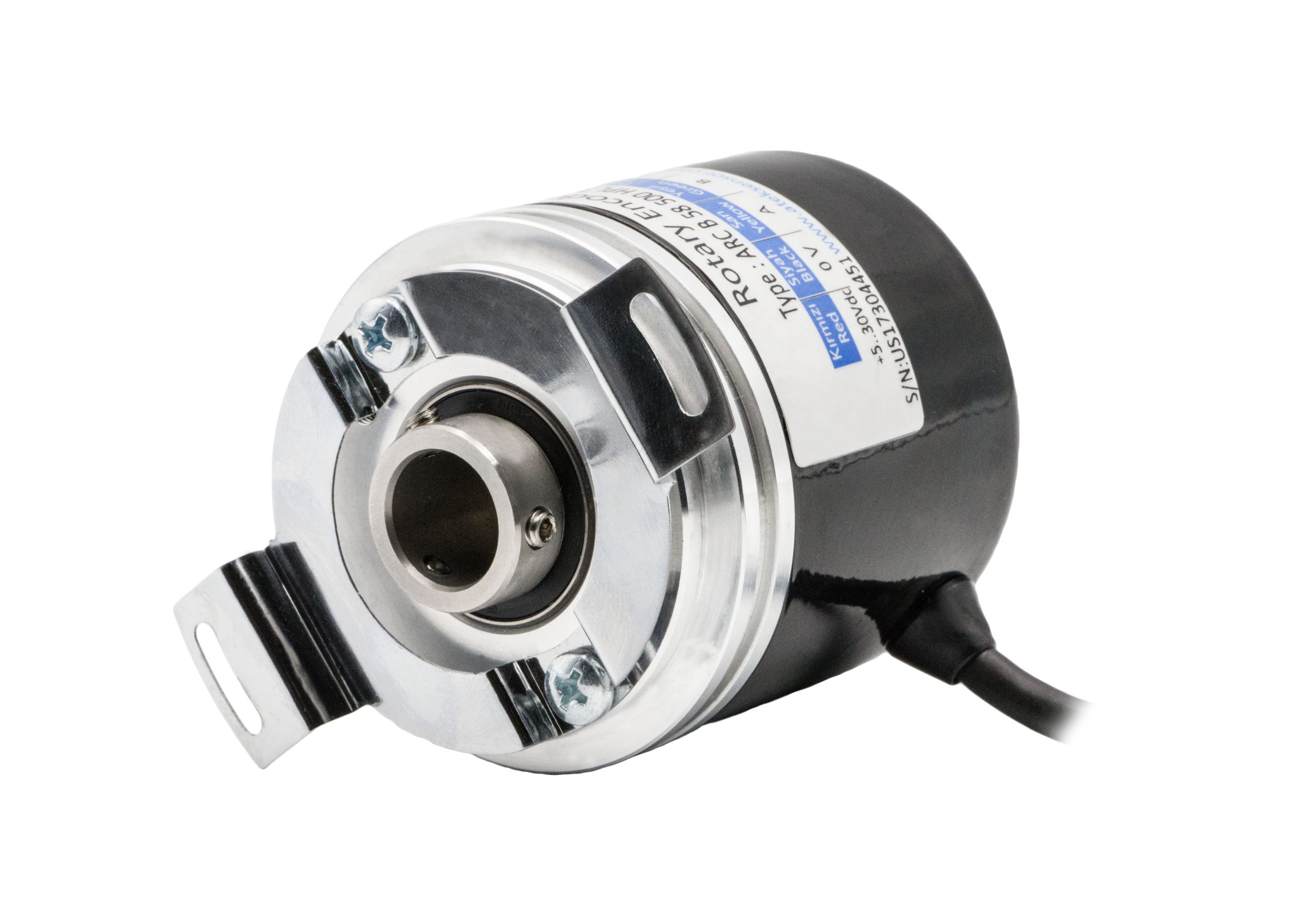

ARC B 50 End Hollow Shaft || ATEK || Made in Türkiye
Back to products
ARC B 58 End Hollow Shaft || ATEK || Made in Türkiye

ARS B 58 End Hollow Shaft || ATEK || Made in Türkiye

Click to enlarge
Atek

Incremental measurement with magnetic principle
58 mm body diameter
Shaft options between 6 and 20 mm
Resolution options from 1 to 1024 pulses
Durable up to 3000 RPM
IP54 protection class

Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 58 mm body diameter; end hollow shaft; different flange options


Datasheet
TR
EN
Resolution Hole Diameter Body Diameter Flange Type Output Protection Datasheet
Different options from 1 to 1024 pulses Different hollow diameters between 6 mm and 20 mm 58 mm Z type or Circular
Push-Pull, TTL Line Driver, Open Collector
 IP 54
  • Magnetic principle, incremental, angular measurement
  • 58 mm body diameter
  • Z type flange or circle flange options
  • S23 (M23, 12pin), S16 (M16, 8pin) socket or standard cable options
  • Semi hollow shaft options from 6 mm to 20 mm
  • Resistant to vibration and shock due to robust aluminum body
  • Easy assembly
  • Resolution options up to 1024 pulses
  • Durable up to 3000 RPM
  • IP54 protection class

-We highly recommend using our Process Control Devices to precisely display measured values on your Rotary Encoder for your automation solutions.

Marka

Atek
Measuring Type

Magnetic
Resolution

Different options from 1 to 1024 pulses<
Max Operating Speed

3000 RPM
Output Frequency

300 kHz
Supply Voltage

10 … 30 VDC or 5 VDC
Current Consumption

50 mA nominal
Output Type

Push pull, TTL Line Driver, Open Collector
Output Signals

A, /A, B, /B, Z, /Z
Input Current

100 mA max (per channel)
Operating Temperature

-25…+85 °C
Storage Temperature

-40…+85 °C
Electrical Connection

5 or 8 x 0,14 mm2 shielded cable
M16 or M23 socket
Body Diameter

58 mm
Shaft Diameters

Different options from 6 mm to 20 mm
Protection Class

IP54
Material

Body: Aluminum
Shaft: Stainless Steel
  • Servo-motors
  • In the feedback task of measuring linear movements
  • Elevator industry
  • Packaging and Production lines
  • Machinery Industry
  • Textile Machinery
  • Woodworking Machines
  • Turning, Milling
  • Automation and Robots
DATASHEET
PDF
PDF
CAD / STEP
ZIP
