AWP 811 Draw Wire Sensor || ATEK || Made in Turkey
2500 mm and 5000 mm stroke (measuring) length
±0.5% FS linearity
Potentiometric, 0-10 VDC, 4-20 mA analog output or CANopen output options
Redundant output model option
IP54 protection class (optional IP67)
Potentiometric measurement; robust stainless steel wire; suitable for long distance measurements; aluminum body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| 2500 mm or 5000 mm | Potentiometric, 4-20 mA Current, 0-10 VDC Voltage or CANopen | IP 54 (optional IP67) | ±0,5% FS |  |
AWP 812 Programmable Draw Wire Sensor || ATEK || Made in Turkey
Different measuring lengths up to 5000 mm
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP67 protection class
Magnetic absolute measurement; suitable for long distances; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Resolution | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|
| Different measuring lengths up to 5000 mm | 0.05mm | Analog or CANopen | IP67 | ±%0,5 FS | |
AWP 820 Draw Wire Sensor || ATEK || Made in Türkiye
Different stroke (measuring) lengths between 6000 mm and 8000 mm
±0.5% FS linearity
2 m/s maximum speed
Potentiometric, 0-10 VDC, 4-20 mA analog output or CANopen output options
Redundant output model option
IP54 protection class
Potentiometric measurement; robust stainless steel wire; suitable for long distance measurements; anodised aluminum body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 6000 mm and 8000 mm | Potentiometric, 4-20 mA Current, 0-10 VDC Voltage or CANopen | IP 54 | ±0,5% FS | |

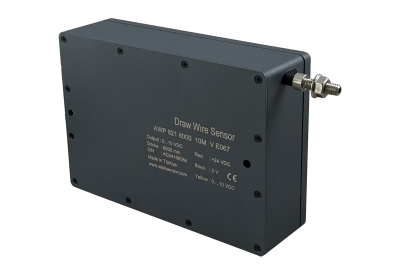

AWP 821 Draw Wire Sensor || ATEK || Made in Türkiye
Different measuring lengths up to 8000 mm (optional other strokes)
±0.5% FS linearity
Potentiometric, 0-10 VDC, 4-20 mA analog output or CANopen output options
Redundant output model option
IP54 protection class (optional IP67)
Datasheet
Potentiometric measurement; robust stainless steel wire; suitable for long distance measurements; aluminum body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| Different measuring lengths up to 8000 mm (optional other strokes) | Potentiometric, 4-20 mA Current, 0-10 VDC Voltage or CANopen | IP 54 (optional IP67) | ±0,5% FS | |
AWP 822 Programmable Draw Wire Sensor || ATEK || Made in Turkey
Different measuring lengths up to 8000 mm (optional different strokes)
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP67 protection class
Magnetic absolute measurement; suitable for long distances; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations
Datasheet
| Stroke (measuring) Lengths | Resolution | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|
| Different measuring lengths up to 8000 mm (optional different strokes) | 0.05mm | Analog or CANopen | IP67 | ±%0,5 FS | |

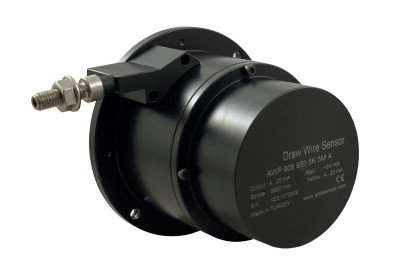

AWP 905 Draw Wire Sensor || ATEK || Made in Türkiye
2500mm, 4000mm or 5000mm stroke (measuring) lengths (Optional others)
±%0.5 FS linearity
Potentiometric, 0-10 VDC, 4-20 mA analog output or CANopen output
IP54 protection
Potentiometric measurement; robust stainless steel wire; suitable for long distance measurements; aluminum body suitable for outdoor use; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| 2500mm, 4000mm, 5000mm (optional other) | Potentiometric, 4-20 mA, 0-10 VDC or CANopen | IP 54 | ±%0,5 FS | |
AWE 110 Draw Wire Encoder || ATEK || Made in Türkiye
Different stroke (measuring) lengths between 300 mm and 1200 mm
0.1 , 0.5 or 0.05 mm/pulse resolution options
2 m/s maximum speed
Incremental output
Small structure
IP53 protection class
Incremental measurement; robust stainless steel wire; anodised aluminium body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output | Protection | Resolution | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 300 mm and 1200 mm | Incremental | IP 53 | 0.1 mm/pulse(standard), 0.2 mm/pulse, 0.05 mm/pulse | |
AWE 210 Draw Wire Encoder || ATEK || Made in Türkiye
Different stroke (measuring) lengths between 1000 mm and 5000 mm
0.2 mm/pulse resolution
2 m/s maximum speed
Incremental output
Compact design
IP53 protection class
Incremental measurement; robust stainless steel wire; anodised aluminum body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output | Protection | Resolution | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 300 mm and 1200 mm | Incremental | IP 53 | 0.1 mm/pulse(standard), 0.2 mm/pulse, 0.05 mm/pulse | |
AWE 310 Draw Wire Encoder || ATEK || Made in Türkiye
Different stroke (measuring) lengths between 5000 mm and 10000 mm
0.3 mm/pulse resolution
2 m/s maximum speed
Incremental output
Compact design
IP53 protection class
Incremental measurement; robust stainless steel wire; anodised aluminum and small body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output | Protection | Resolution | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 5000 mm and 10000 mm | Incremental | IP 53 | 0.3 mm/pulse | |
AWE 404 Draw Wire Encoder || ATEK || Made in Türkiye
Different measuring lengths between 1000 mm and 4000 mm
0.05, 0.1 veya 0.2 mm/pulse resolution
2 m/s maximum speed
Incremental output
Compact design
IP54 (Optional IP67) protection class
Incremental measurement; robust stainless steel wire; anodised aluminum and small body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output | Protection | Resolution | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 1000 mm and 4000 mm | Incremental | IP54 (Optional IP67) | 0.05 mm/pulse, 0.1 mm/pulse or 0.2 mm/pulse | |
AWE 508 Draw Wire Encoder || ATEK || Made in Türkiye
Different measuring lengths between 4000 mm and 8000 mm
0.3 mm/pulse resolution
2 m/s maximum speed
Incremental output
Compact design
IP54 (Optional IP67) protection class
Incremental measurement; robust stainless steel wire; anodised aluminum body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output | Protection | Resolution | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 4000 mm and 8000 mm | Incremental | IP54 (Optional IP67) | 0.3 mm/pulse | |
AWE 512 Draw Wire Encoder || ATEK || Made in Türkiye
Different stroke (measuring) lengths between 5000 mm and 12000 mm
0.3 mm/pulse resolution
2 m/s maximum speed
Incremental output
Compact design
IP54 (Optional IP67) protection class
Incremental measurement; robust stainless steel wire; aluminum body; resistant to shocks and vibrations
| Stroke (measuring) Lengths | Output | Protection | Resolution | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 5000 mm and 12000 mm | Incremental | IP54 (Optional IP67) | 0.3 mm/pulse | |
