AWI 100 Programmable Draw Wire Sensor With Integrated Inclinometer || ATEK || Made in Türkiye
Integrated inclination sensor option for simultaneous length and inclination measurement
Different stroke (measuring) lengths up to 10000 mm (10 meters)
Selectable angle values between 0…360° or ±180° for inclination measurement
Analog or CANopen output
Programmable analog output option
IP67 protection class
Integrated inclination sensor option for simultaneous length and inclination measurement; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations
Datasheet
| Stroke (measuring) Lengths | Inclinometer Measuring Range | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|
| Different measuring lengths up to 10000 mm (optional other strokes) | Different angles between 0…360° and ±180° | Analog or CANopen | IP67 | ±%0,5 FS |  |

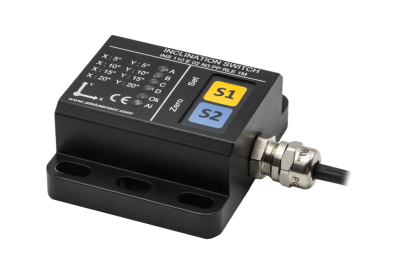

INS 110 Two Axis Tilt Sensor / Inclinometer || ATEK || Made in Türkiye
Two axis (XY) tilt measurement
Adjustable ±90° measuring range
Model with relay or PNP Open Collector output
± 0.15⁰ sensitivity
IP64 protection class
Compact structure
4 different operating mode (N1/ N2 / N3 / N5)
Adjustable set values in calibrated operating mode
0 point can be adjusted on the sensor
High precision tilt measurement ±0.1°; compensated axial sensitivity; small and robust metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| 2 axis (X and Y axis ±90°) | Relay PNP Open Collector (Transistor) | ±0,15⁰ | IP 64 | |
INS 120 Single Axis Angle / Tilt Sensor / Inclinometer || ATEK || Made in Türkiye
Single axis 360° inclination measurement
Analog output options 0…5VDC, 0…10VDC or 4…20mA
2 x PNP open collector output type
±0.15⁰ sensitivity
IP64 protection class
Compact structure
– Programmable measuring range
– Both analog and transistor output at the same time and dual analog output support
– 0 point can be adjusted on the sensor
High precision tilt measurement ±0.15°; transistor and analog output; compensated axial sensitivity; small and robust metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| 1 axis (X axis 0…360°) | 0…5V / 0…10V / 4…20mA Analog Output2 x PNP Open Collector (Transistor) | ±0,15⁰ | IP 64 | |
INS 130 Two Axis Angle / Tilt Sensor / Inclinometer || ATEK || Made in Türkiye
Two axes 0 … 360⁰ angle and tilt measurement
Analog output options 0…5VDC, 0… 10VDC or 4… 20mA
PNP Open Collector output
±0.15⁰ sensitivity
IP64 protection class
Compact structure
– Programmable measuring range
– Both analog and transistor output at the same time
– 0 point can be adjusted on the sensor
High precision tilt measurement ±0.15°; compensated axial sensitivity; small and robust metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| 1 axis (X axis 0…360°) 2 axis (X and Y axis ±0,90⁰) | 0…5V / 0…10V / 4…20mA Analog Output PNP Open Collector (Transistor) | ±0,15⁰ | IP 64 | |
INC 110 Two Axis Angle / Tilt Sensor / Inclinometer || ATEK || Made in Türkiye
±90⁰ dual-axis measuring range or 0-360 ° single-axis measuring range option
4-20 mA, 0-5V, 0-10V or CANopen signal output option
±0.2⁰ accuracy
IP67 protection class
Compact structure
– Programmable measuring range (Via CANopen)
– Adjustable 0 point with external voltage
High precision angle measurement ±0.2°; compensated axial sensitivity; small and robust rectangle metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| 1 axis (X axis 0…360°) 2 axis (X and Y axis ±0,90⁰) | 0…5V / 0…10V / 4…20mA Analog Output CANopen | ±0,2⁰ | IP 67 | |
INC 210 Single Axis Angle / Tilt Sensor / Inclinometer || ATEK || Made in Türkiye
Angle measurement up to 360⁰
4-20 mA, 0-5V, 0-10V or CANopen signal output option
±0.2⁰ accuracy
IP67 protection class
Compact structure
– Programmable measuring range (Via CANopen)
– Redundant output support
– Adjustable 0 point with external voltage
High precision tilt measurement ± 0.2°; compensated axial sensitivity; small and robust round metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| 1 axis (X axis 0…360°) | 0…5V / 0…10V / 4…20mA Analog Output CANopen | ±0,2⁰ | IP 67 | |
